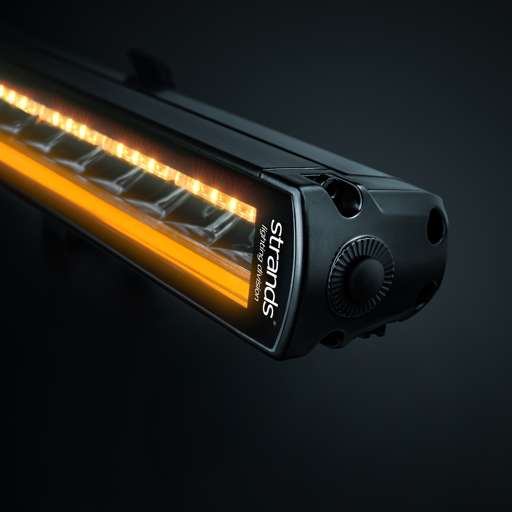

LBL-22 LED BAR 34″

Art Nr: 808039
Rek. pris: 2,714 kr (Exkl. moms)

En 34”, enkelradig LED-ramp med svart hus, kabel och DT-anslutning. Presterar 1 lux på 230 meter och har 8498 faktiska lumen.

    • Type of LED CREE XML
    • Unit PCS
    • Type of Lamp LED
    • PCS LED´s 15
    • Voltage (V DC) 12-24V DC
    • Theoretical effect (w) 12V 150
    • Theoretical effect (w) 24V 150
    • Consumption (w) 12V 110+-5W
    • Consumption (w) 24V 110+-5W
    • Theoretical lumen 13500
    • Actual lumen 8498
    • 1 LUX @ m 230
    • Kelvin 6500
    • IP-class 67
    • Colour housing Black
    • Colour lens Clear
    • Beam pattern Combo
    • Connection DT
    • Cable length (mm) 200
    • Material bracket Stainless steel
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate
    • Length (mm) 868,6
    • Depth (mm) 80
    • Height (mm) 76,4
    • Height including bracket (mm) 86
    • Operating temperature -35 - +45°C
    • ADR-approved No
    • E-approved No
    • EMC ECE R10
    • Length inner box (mm) 940
    • Height inner box (mm) 120
    • Depth inner box (mm) 100
    • Weight (kg) 5
    • PCS in master carton 6
    • Length master carton (mm) 955
    • Height master carton (mm) 260
    • Width master carton (mm) 320
    • Weight master carton (kg) 33
    • Country of origin China
    • Taric code 85122000
    • EAN 7323030175030
    • Warranty 1 year
