Strands Lighting Division

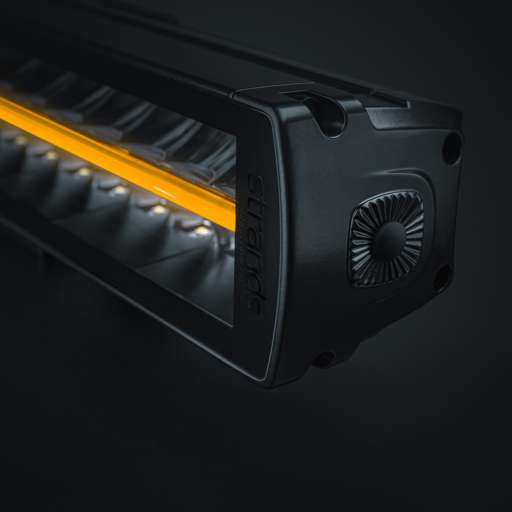

KOMPLETT KIT SIBERIA DRC 22″ LED BAR

Art Nr: 809196-KIT
Rek. pris: 444.90$ (Exkl. moms)
    • Color housing Black
    • Unit KIT
    • Type of Lamp LED
    • PCS LED´s 40
    • Voltage (V DC) 10-40V DC
    • Theoretical effect (w) 12V 200
    • Theoretical effect (w) 24V 200
    • Consumption (w) 12V High beam: 91 White position light: 5,5 Amber position light: 14,5
    • Consumption (w) 24V High beam: 91 White position light: 5,5 Amber position light: 14,5
    • Theoretical lumen 16000
    • Actual lumen 6161
    • 1 LUX @ m 415
    • Kelvin 6000
    • IP-class 67/69K
    • Color lens Clear
    • Color LED´s White and Amber
    • Beam pattern Combo
    • Position light Yes
    • Connection DT-4
    • Cable length (mm) 500
    • Material bracket Stainless steel
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate
    • Length (mm) 566,33
    • Depth (mm) 71,6
    • Height (mm) 76
    • Height including bracket (mm) 89
    • Operating temperature -20°C - +45°C
    • ADR-approved No
    • E-approved Yes
    • According to regulation ECE R112, R7
    • Reference number 40
    • EMC ECE R10
    • Black cable - (Negative)
    • Red cable + Positive
    • White cable White position light
    • Yellow cable Amber position light
    • Mounting details included Screws, washers, bolts
    • Country of origin China
    • EAN 7350133810827
    • Warranty 3 Years
