Strands Lighting Division

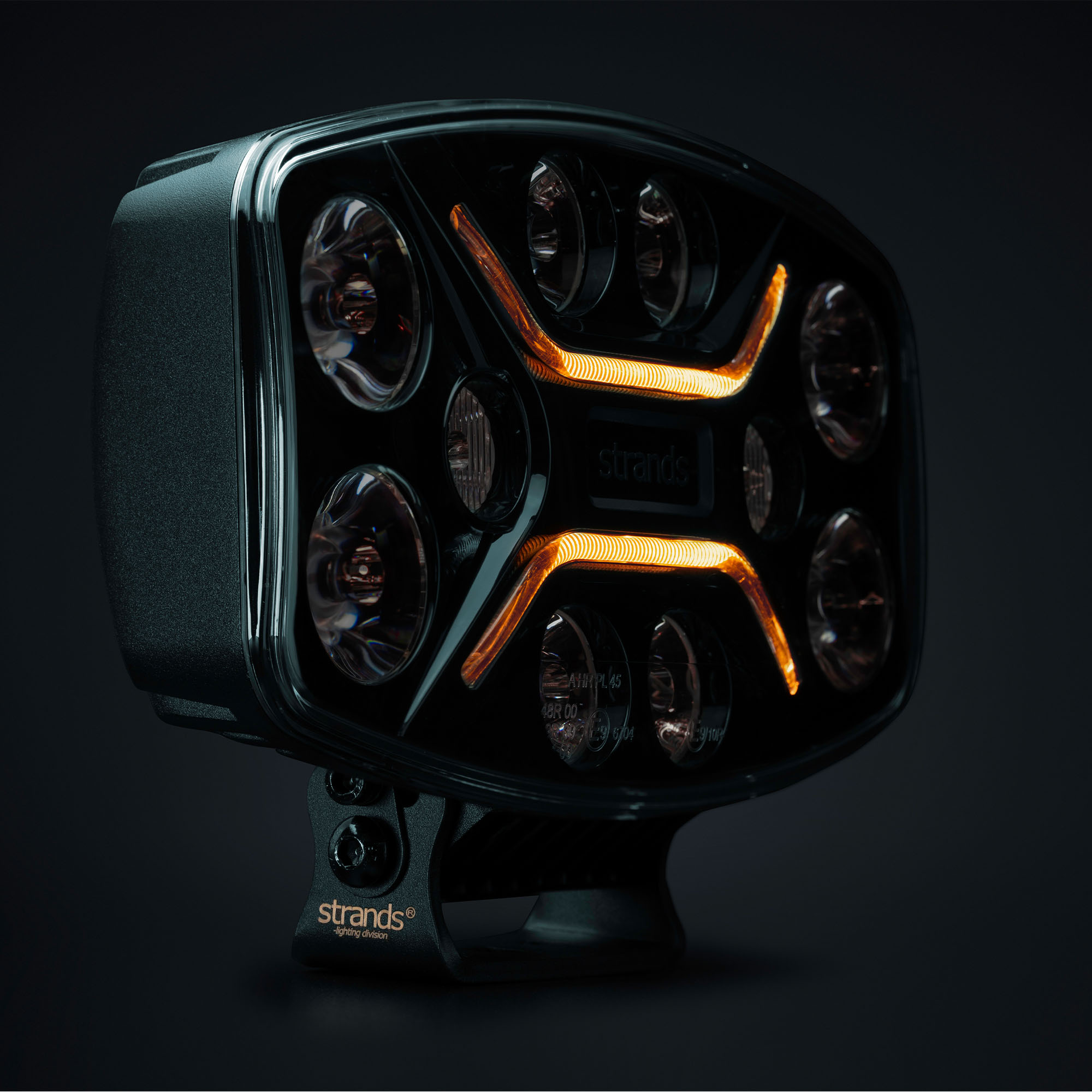

DELTA EXTRALJUS

Art Nr: 270699
Rek. pris: 2,239 kr (Exkl. moms)
Köp i butik Köp i USA
Manual Produktblad

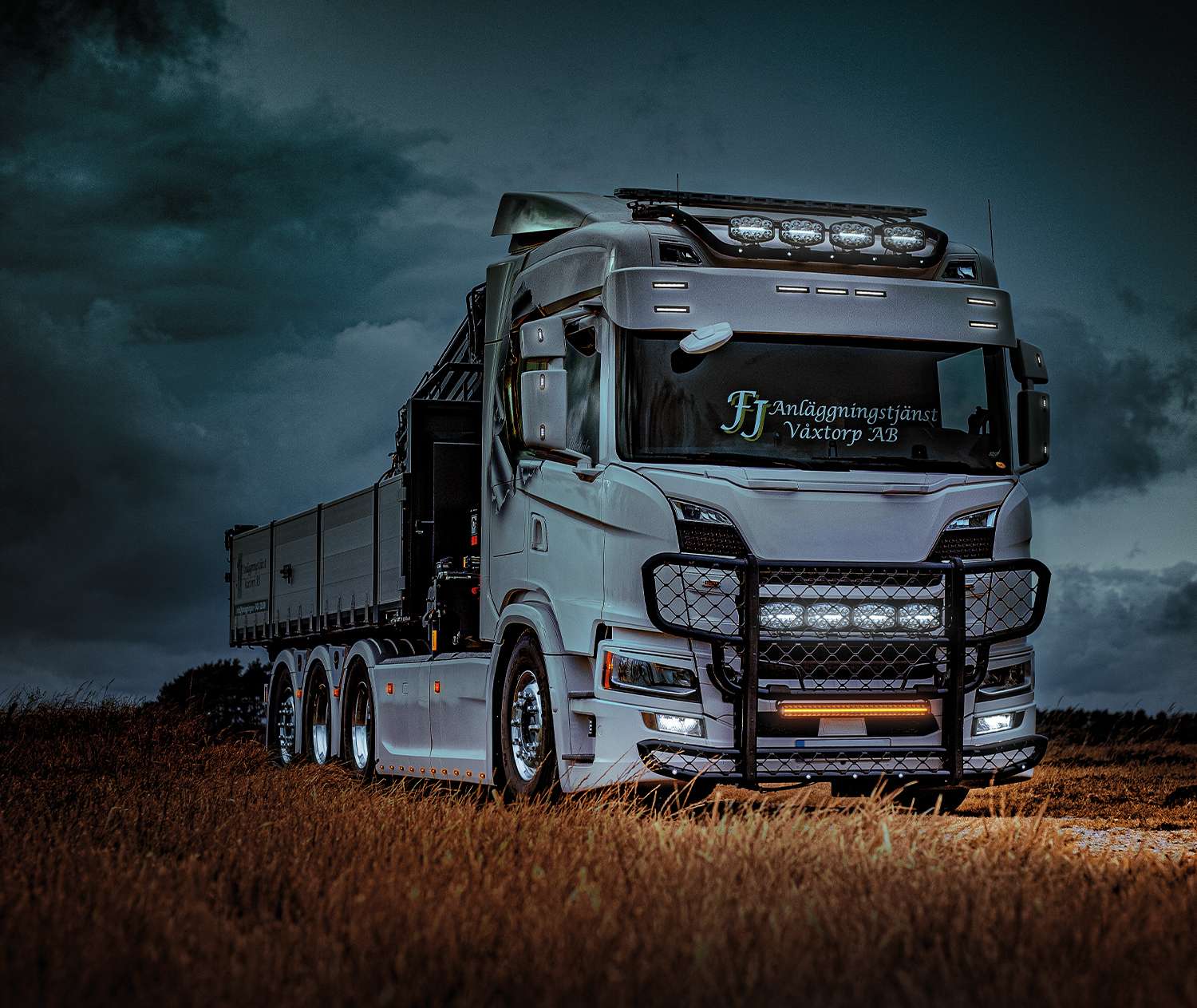

Delta passar perfekt både till personbil, lastbilar och andra tyngre fordon. Hög kvalitet i kombination med en kraftfull ljusprestation gör extraljuset till ett förstahandsval för många professionella användare. E-godkänd enligt ECE R112 med referensnummer 25.

    • Unit pcs
    • Voltage 10-48V DC
    • Theoretical effect 80W
    • Consumption 66W
    • Consumption specific function White position light: 1,2W, Amber position light: 1,5W
    • Theoretical lumen 8416lm
    • Actual lumen 6200lm
    • 1 lux @ 411m
    • Color temperature 6000K
    • Beam pattern Optimized beam
    • Beam angle 15,1
    • Connection Cable
    • Cable length 2500mm
    • Color housing Black
    • Color lens Clear
    • Color LED´s White/amber
    • Material bracket Stainless steel
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate
    • Length 245mm
    • Depth 90mm
    • Height 140mm
    • Height including bracket 160mm
    • Weight 1,35kg
    • IP-class IP67
    • Operating temperature -35 - +45°C
    • E-approved Yes
    • According to regulation ECE R112
    • Reference number 25
    • EMC ECE R10
    • Black cable - (Negative)
    • Red cable + (High-beam)
    • White cable + White Position light(Positive)
    • Blue cable + Amber position light(Positive)
    • Included in package Bracket, Screws, washers, bolts
    • Length inner box 290mm
    • Width inner box 265mm
    • Height inner box 135mm
    • Gross weight 1,5kg
    • Volume 0,001m³
    • Warranty 3 Years
    • Length master carton 590mm
    • Width master carton 310mm
    • Height master carton 325mm
    • Weight master carton 9,5kg
    • PCS in master carton 4pcs
