Strands Lighting Division

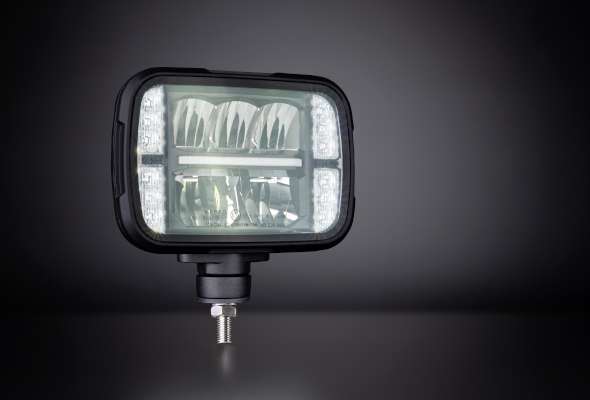

ALASKA PLOGLAMPA LED

Art Nr: 270708
Rek. pris: 2,495 kr (Exkl. moms)

Glöm bilden av hur en ploglampa ser ut. Alaska ger dig maximal synlighet, oavsett väder och är startskottet för nästa generations ploglampor. Design i kombination med högteknologiska funktioner gör lampan till det perfekta valet.

    • Type of LED OSRAM & CREE
    • Unit PCS
    • Type of Lamp LED
    • PCS LED´s 5
    • Voltage (V DC) 9-32V DC
    • Consumption (w) 12V Position light: 4,5W, Indicator: 5W, High beam: 57W, Low beam: 17W, Heating lens: 36W
    • Consumption (w) 24V Position light: 5W, Indicator: 6W, High beam: 55,5W, Low beam: 18,5W, Heating lens: 31W
    • Functions High beam, low beam, position light, indicator, heated lens
    • Theoretical lumen 3000 (high beam), 2400 (low beam)
    • Actual lumen 1380 (high beam) 1008 (low beam)
    • 1 LUX @ m 80 (low beam) 160 (high beam)
    • Kelvin 6000
    • IP-class 67/69K
    • Colour housing Black
    • Colour lens Clear
    • Colour LED´s White
    • Beam pattern Combo high beam, combo low beam
    • Position light Yes
    • Connection DT-6
    • Cable length (mm) 500
    • Material bracket Stainless steel
    • Material housing/chassi Aluminium
    • Material lens Glass
    • Length (mm) 200,4
    • Depth (mm) 85,5
    • Height (mm) 142,4
    • Height including bracket (mm) 177,8
    • Operating temperature -30°C - +65°C
    • ADR-approved No
    • E-approved Yes
    • According to regulation ECE R6, R7, R112
    • Reference number 17,5
    • EMC ECE R10
    • 1 LUX at (m) for 1 unit 160
    • 1 LUX at (m) for 2 units 226
    • 1 LUX at (m) for 3 units 277
    • 1 LUX at (m) for 4 units 320
    • 1 LUX at (m) for 5 units 358
    • 1 LUX at (m) for 6 units 392
    • 1 LUX at (m) for 7 units 423
    • 1 LUX at (m) for 8 units 453
    • 1 LUX at (m) for 9 units 480
    • 1 LUX at (m) for 10 units 506
    • Black cable - TO CHASSIS GROUND (pin 1)
    • Red cable HIGH BEAM / HEATING LENS (pin 2)
    • Yellow cable LOW BEAM / HEATING LENS (pin 6)
    • Green cable POSITION LIGHT (pin 3)
    • Grey cable INDICATOR (pin 4)
    • Length inner box (mm) 240
    • Height inner box (mm) 180
    • Depth inner box (mm) 122
    • Weight (kg) 1
    • PCS in master carton 8
    • Length master carton (mm) 495
    • Height master carton (mm) 375
    • Width master carton (mm) 265
    • Weight master carton (kg) 10,5
    • Country of origin China
    • Taric code 85122000
    • Warranty 3 Years
